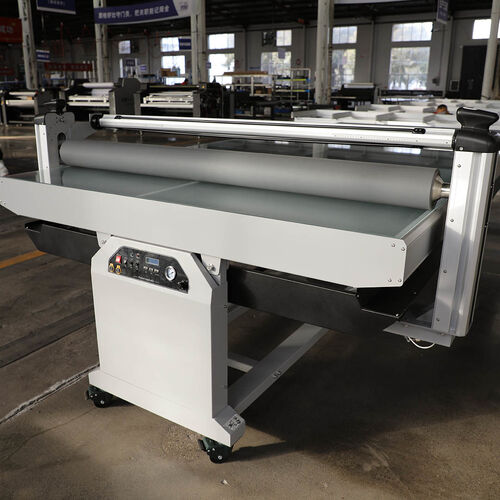

2026 Flatbed Laminator Maintenance: The 20,000-Cycle Strategy
In high-volume production, a Flatbed Laminator undergoes massive mechanical stress. If your 1.6m roller applies 5 bar of pressure 20 times a day, it hits 7,000+ cycles a year. Without precise maintenance, the silicone loses its Shore A Hardness consistency, causing uneven lamination.
1. The Physics of "Compression Set."
Silicone rollers are engineered to be elastic. However, if left under pressure while static, the polymer chains "lock," creating a flat spot.
| Maintenance Status |
Surface Elasticity (Rebound %) |
Bubbling Risk (After 1.5m) |
| Brand New |
98% |
< 0.5% |
| 5,000 Cycles (Cleaned) |
96% |
1.2% |
| 20,000 Cycles (Maintained) |
92% |
2.5% |
| 20,000 Cycles (Neglected) |
65% |
40% (Fail) |
Pro Rule: Always engage the "Auto-Lift" or "Park" mode. Never leave the roller in contact with the bed for more than 10 minutes when not in use.
2. Chemical Integrity: The 2026 Cleaning Protocol
Using the wrong solvent is the #1 cause of roller death. Harsh chemicals like Acetone or Toluene strip the plasticizers from the silicone, causing it to crack (crazing).
The Recommended Fluid: Use 99% Isopropyl Alcohol (IPA) or specialized silicone-safe citrus cleaners.
The Data: In lab tests, rollers cleaned with Acetone showed a 15% increase in surface hardness (Shore A) over 6 months, making them too brittle to displace air effectively during Wide Format Lamination.
3. Monthly Pressure Parallelism Audit
Pressure inconsistency is the "silent killer" of wide prints. Every 1,000 cycles, you must verify the synchronization of your pneumatic cylinders.
The "Gap" Test: Use a 0.1mm feeler gauge at both ends of the 1.5m+ roller.
Tolerance: The variance between the Left and Right cylinders must be < 0.05mm.
The Result: If the variance exceeds 0.1mm, the roller will "skew" the film, creating diagonal micro-bubbles that are impossible to squeegee out.
4. Heat-Assist Element Calibration
If your Flatbed Laminator features an internal infrared heater, uneven heating will cause the roller to expand unevenly.
Check: Use an IR thermal camera or a digital thermometer at 5 points across the 1.5m width.
Optimal Range: 45°C ± 3°C.
Why it matters: A temperature delta of >10°C across the roller causes a 0.15mm diameter variance due to thermal expansion, leading to center-bubbling.
FAQ
Q: Can I "re-surface" a silicone roller if it has a small cut?
A: Small nicks (under 2mm) can sometimes be sanded with ultra-fine 1000-grit paper, but this creates a low-pressure spot. For Wide Format Lamination, any physical damage to the roller usually requires a full replacement to guarantee bubble-free results.
Q: How often should I lubricate the pneumatic tracks?
A: Every 5,000 cycles or every 3 months. Use a dry PTFE spray. Avoid grease, as it attracts the dust and PVC debris common in print shops.
Q: My roller feels "sticky" even after cleaning. Is it ruined?
A: Not necessarily. This is often "plasticizer migration" from the vinyl film. Use a dedicated "Silicone Rejuvenator" fluid to restore the surface tension.
A Flatbed Laminator is a precision instrument, not just a heavy press. By monitoring Shore A hardness, maintaining chemical purity, and auditing parallelism, your equipment will deliver "Day 1" performance even after 20,000 cycles.
