Large-format vinyl application requires more than a wide working table and a pressure roller. When processing graphics across a large substrate, the relationship between roller position, pressure, material thickness, and adhesive contact can directly affect the application process.

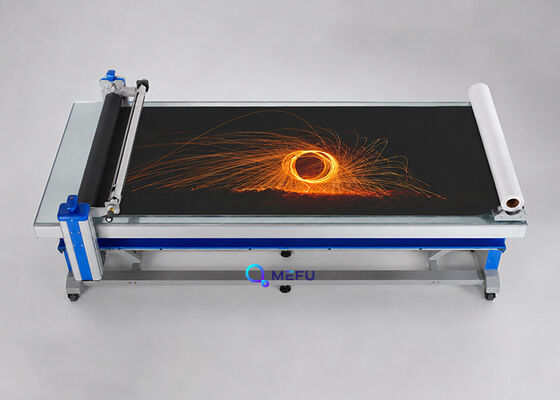

The MF-B4 1600mm flatbed laminator is designed for professional vinyl application, graphic mounting, and large-format laminating work. Its servo motor and pneumatic pressure control system provide precise adjustment of the laminating roller position, while the 130mm silicone roller is designed to provide stable contact across the working width.
With a 1600mm working width, the MF-B4 is suitable for large-format signage, printed vinyl graphics, display boards, rigid panels, and other compatible flat substrates.
Precision Pressure Control for Vinyl Application
Vinyl application requires controlled contact between the adhesive graphic and the substrate. Too much pressure may affect sensitive materials, while insufficient or uneven pressure can make it more difficult to achieve consistent contact.
The MF-B4 combines servo motor adjustment with pneumatic pressure control to provide more precise control of the roller position and working pressure. According to the manufacturer's published technical information, the spacing between the upper and lower laminating rollers can be controlled with an adjustment accuracy of 0.01mm.
This configuration allows operators to set the working conditions according to the substrate thickness, vinyl characteristics, and application requirements.
Servo Motor Roller Adjustment
The servo motor is used to control the roller spacing with fine adjustment. This is particularly useful when the application process requires a controlled gap between the rollers and the substrate.
Precise roller positioning can help operators establish repeatable working conditions when processing different materials.
Pneumatic Pressure Control
The pneumatic system provides the lifting and pressure mechanism for the laminating roller. The MF-B4's standard configuration uses pneumatic roller lifting, providing controlled movement of the roller during operation.
Combining servo positioning with pneumatic pressure provides two complementary forms of control:
- Precise roller positioning
- Controlled pneumatic pressure
- Stable roller movement
- Adaptation to different substrate conditions
Servo Motor vs. Conventional Manual Pressure Adjustment
For large-format vinyl application, the method used to control roller position can influence how easily operators establish repeatable working conditions.
Manual adjustment systems require the operator to physically set the roller position. By contrast, servo motor control allows finer positioning of the roller according to the machine's control system.
The MF-B4 combines servo motor roller-spacing control with pneumatic pressure control. This configuration is intended to provide more precise adjustment for professional laminating and mounting applications.
The benefit is not simply higher pressure. The objective is controlled pressure and roller positioning according to the material and application requirements.
What Materials Can the MF-B4 Handle?
The MF-B4 is designed for both rigid and flexible media. Published product information lists applications involving self-adhesive vinyl, graphics, foam boards, aluminum composite panels, acrylic, and corrugated plastics.
However, material compatibility should always be evaluated based on:
- Substrate thickness
- Surface condition
- Vinyl construction
- Adhesive characteristics
- Graphic size
- Required application pressure
- Operating temperature
- Machine configuration
Testing with the actual material combination is recommended before full-scale production.
Why Choose the MF-B4 for Precision Vinyl Application?
The MF-B4 combines several technologies designed for large-format graphic application:
- 1600mm working width for large-format production
- Servo motor roller adjustment for precise positioning
- Pneumatic pressure control for controlled roller operation
- 130mm silicone roller for stable material contact
- Flatbed working structure for rigid and flexible media
- LED illumination for graphic positioning on applicable configurations
- Safety glass working surface for professional production environments
Together, these features provide a controlled workflow for vinyl application, graphic mounting, signage, and large-format laminating.
Conclusion
The MF-B4 1600mm servo motor flatbed laminator is designed for businesses that require controlled pressure and precise roller positioning during large-format vinyl application.
Its combination of servo motor adjustment, pneumatic pressure control, 130mm silicone roller, and 1600mm working width makes it suitable for professional signage, advertising graphics, rigid panel mounting, and other compatible flat-media applications. The available LED-illuminated working surface and media holder can further support graphic positioning and material handling.
For companies looking for a 1600mm flatbed laminator with precision pressure control for vinyl application, the MF-B4 provides a flexible platform for both rigid and flexible media processing.
Contact us for MF-B4 specifications, working dimensions, compatible materials, optional configurations, and application recommendations.
