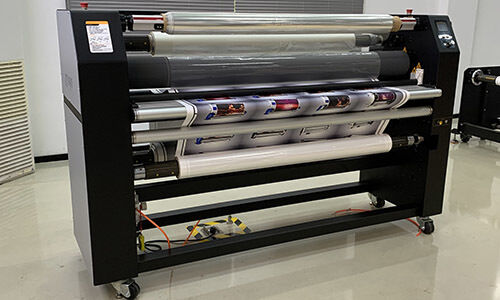

The Professional’s Guide To Laminating Excellence: From Wide-Format Versatility To High-Speed Double-Sided Efficiency

Q1: How does the MF1700-F2 eliminate bubbles and "silvering" on UV or dark-colored prints?

A: The MF1700-F2 features a Heat-Assist system on the top silicone roller (adjustable up to 60℃). This mild heat softens the adhesive of cold films, allowing it to flow into the micro-textures of UV inks or grainy media. Combined with its high-precision pneumatic pressure adjustment, the machine ensures an instant, crystal-clear bond that eliminates the "silvering" effect common in standard cold laminators.

Q2: Can the MF1700-F2 be operated by a single person?

A: Absolutely. Efficiency is at the core of the MF1700-F2’s design. It is equipped with swing-out supply shafts and auto-rewind systems for the release liner, allowing one person to load film and manage the process without assistance. Additionally, the foot pedal control and the safety laser sensor allow the operator to align the media with both hands while safely controlling the machine’s movement.

Q3: What is the maximum thickness of substrate the MF1700-F2 can handle?

A: The MF1700-F2 is highly versatile for both roll-to-roll and board mounting tasks. It features a motorized nip opening that can lift the rollers to 28mm (1.1 inches). This allows you to laminate and mount graphics onto thick substrates like PVC foamboard, KT board, or even custom wooden panels with consistent pressure across the entire width.

Q4: How does the MF1700-F2 ensure long-run tracking without the film drifting?

A: Long-run accuracy is achieved through the MF1700-F2’s industrial-grade construction. The machine uses heavy-duty, precisely balanced 130mm large-diameter silicon rollers that maintain uniform tension. Combined with its robust frame and anti-tilt feeding table, it ensures that even a 50-meter roll of vinyl tracks straight from start to finish, minimizing material waste.
