Features

Specifications

Name: Wide Format Cold Laminator

Voltage: 110V/220V

Model: ENTRY Manual Laminator

Roller Material: Silicone

Application: Lamination

Running: Manually

Up And Down: Pneumatic

N.W: 100KGS

Highlight:

Versatile Wide Format Cold Laminator

Wide Format Cold Laminator 100KGS

Commercial Laminating Machine Versatile

Basic Infomation

Place of Origin: CHINA

Brand Name: MEFU/LEFU

Certification: CE, RoHS, ISO, PSE

Payment & Shipping Terms

Packaging Details: wooden case/carton

Delivery Time: 7-14 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Gallery

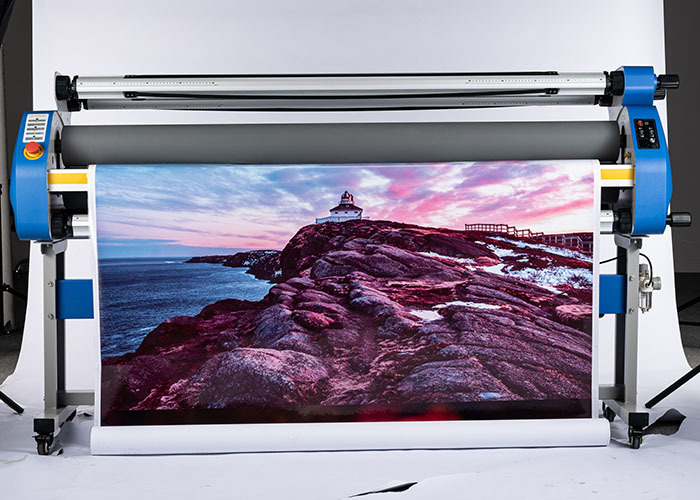

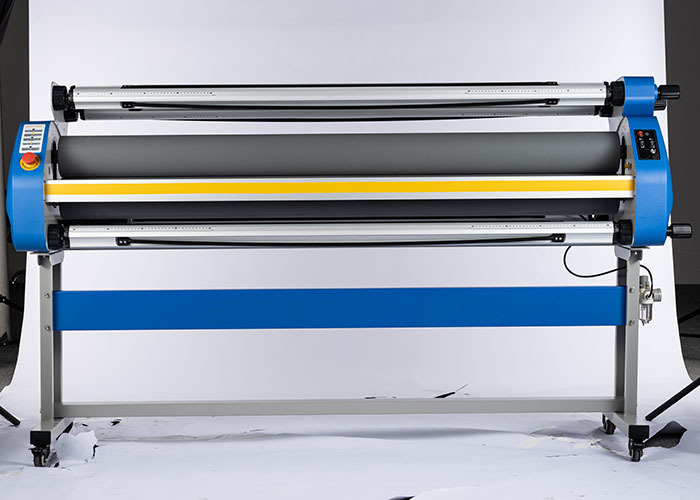

Versatile Wide Format Cold Laminator 100KGS Commercial Laminating Machine

Product Description

Cold Wide Format Laminator Vs Traditional Heat Lamination: What Sign Makers Need To Know

For sign makers, the choice between cold and hot lamination is critical, directly impacting material compatibility, production speed, and the longevity of the final product. The industry standard for wide-format graphics and signage has overwhelmingly shifted to Cold Lamination for its versatility and safety with modern printing technology.

Here is a breakdown of the core differences and why one dominates the sign-making space.

Advantage for Sign Makers	Why It Matters
Material Safety (Non-Negotiable)	Modern inkjet inks (Eco-Solvent, Latex, UV) and vinyl substrates are heat-sensitive. Hot lamination risks warping, stretching, color shifting, or melting the material, leading to costly waste. Cold lamination is 100% safe.
Heat-Assist Functionality (Best of Both Worlds)	Most professional cold laminators include a "heat-assist" top roller (usually under 60℃). This low, controlled heat softens the adhesive, which dramatically reduces silvering (tiny air bubbles) and improves the final optical clarity and adhesion without damaging the substrate.
Versatility in Applications	Cold laminators are used for mounting (applying a print to a rigid substrate like foam board or PVC) and laminating (applying a clear protective layer). They handle all common sign materials: vinyl, banners, vehicle wraps, and window graphics.
UV Protection	Cold laminate films are specifically formulated with UV inhibitors, providing superior protection against sun exposure and dramatically extending the outdoor life of prints.
Instant Operation	No warm-up time is needed (beyond a few minutes for optional heat-assist), allowing for faster job turnaround.

Traditional Hot Lamination (Thermal)

Hot laminators use heat to melt a glue-like adhesive onto the film, bonding it to the print.

Disadvantage for Sign Makers	Why It Matters
Material Incompatibility	High heat (often over 100℃) is destructive to most modern wide-format media, especially vinyl and porous inkjet prints. This makes traditional hot lamination largely obsolete for sign production.
Risk of Print Damage	The process requires precise temperature and speed settings. Mistakes often result in warped, stretched, or bubbled prints, leading to high material waste and production delays.
Encapsulation-Focused	True hot lamination is best suited for "encapsulation" (sealing an item fully on all sides, like a menu or ID card) using thicker polyester films. This is not the primary need for wide-format graphics.
Energy & Wait Time	Requires a significant warm-up time and consumes more power due to the heating elements.

Key Decision for Sign Shop Owners

Feature	Cold Lamination (Sign Industry Standard)	Hot Lamination (Obsolete for Wide-Format)
Primary Use in Sign Making	Applying protective film to vinyl, paper, or board without heat damage.	Best for office documents, menus, or IDs on polyester film.
Material Compatibility	Excellent—Safe for vinyl, inkjet, photo paper, and rigid boards.	Poor—Damages most modern wide-format substrates and inks.
Typical Film Type	Pressure-Sensitive (PS) Vinyl/PVC Films (often with UV inhibitors).	Heat-Activated Thermal Films (Polyester/Polypropylene).
Bubbling/Clarity	Very low risk, especially with Heat-Assist to eliminate silvering.	High risk of internal bubbling and hazing due to trapped moisture/air.
Primary Mechanism	Pressure + Adhesive (Heat is optional for assist).	Heat + Pressure (Heat is mandatory).

For any wide-format sign business producing high-quality vinyl graphics, banners, posters, or vehicle wraps, a Cold Laminator (ideally with a Heat-Assist top roller) is the essential piece of finishing equipment. It ensures maximum material safety, superior UV protection, and the professional optical clarity demanded by commercial clients.
