Mf-b4 Flatbed Applicator | Adjustable Speed & Pneumatic Pressure

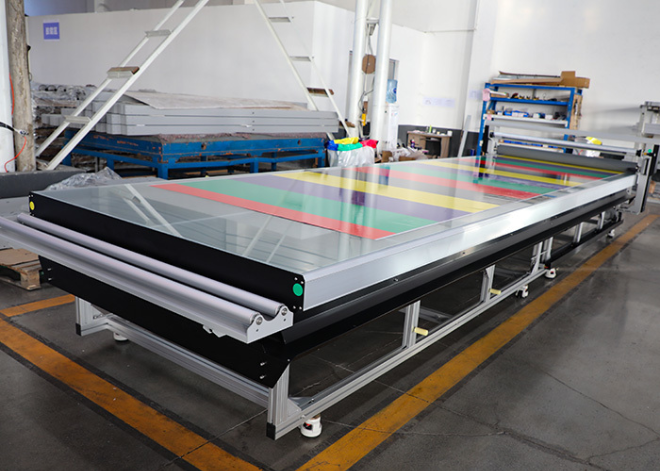

The MF-B4 Flatbed Applicator is a height-adjustable application table designed for precise lamination, coating, adhesive application, and other flat-surface processing tasks. With adjustable speed, pneumatic pressure control, temperature control up to 60°C, and an optional laminating function, it provides a flexible solution for industrial and high-volume production environments.

MF-B4 Flatbed Applicator Model and Size Options

The MF-B4 Flatbed Applicator is available in a wide range of working sizes to accommodate different substrate dimensions, production requirements, and application environments. Models range from 1300 * 2500 mm to 2100 * 8000 mm, providing options for standard applications as well as large-format industrial production.

Key Features

• Adjustable application speed for different materials and processing requirements
• Pneumatic adjustable pressure for controlled and consistent pressure across the working surface
• Height-adjustable working table for improved operator ergonomics and easier material handling
• Temperature control up to 60°C for applications requiring controlled heating
• Optional laminating function for film, adhesive, and protective-material applications
• Customizable configuration to accommodate different substrate sizes and production requirements
• Certifications including CE, RoHS, ISO, and PSE, subject to the applicable product configuration and certification scope

Pneumatic Pressure and Adjustable Speed

The MF-B4 uses a pneumatic pressure system to provide controlled and repeatable application pressure. Operators can adjust the pressure according to the material and application requirements, helping achieve consistent results across different substrates.

The adjustable speed function provides additional process control. Users can select a suitable operating speed based on the material, coating or lamination process, and desired production efficiency.

Height-Adjustable Flatbed Design

The height-adjustable structure allows the working position to be adapted to different operators, material thicknesses, and production requirements. This makes loading and unloading easier while providing greater flexibility for repeated production tasks.

The flatbed design also provides a stable working surface for applications where accurate positioning and even pressure distribution are important.

Temperature Control up to 60°C

The MF-B4 supports temperature settings of up to 60°C, providing controlled heating for applications that require moderate thermal assistance during lamination or material processing.

Temperature control can be combined with pneumatic pressure and adjustable speed to help operators establish repeatable processing conditions for different materials.

Customizable Configuration

Different production environments may require different working areas, substrate sizes, or operating parameters. The MF-B4 series is available in multiple configurations.

Custom configurations may also be available depending on production requirements. Buyers can contact the manufacturer to confirm working dimensions, pressure specifications, temperature requirements, and other configuration options before ordering.

Applications

• Protective film application
• Film and adhesive lamination
• Signage and display production
• Graphic and printed-material processing
• Coating and adhesive application
• Prototype and small-batch production
• Material testing and product development
• Other industrial processes requiring controlled pressure and flat-surface application

The appropriate configuration should be selected according to the substrate dimensions, material characteristics, application process, and required production volume.

Certifications

Depending on the applicable configuration, the MF-B4 series is available with CE, RoHS, ISO, and PSE certifications. These certifications can support international purchasing and compliance requirements. Buyers should confirm the specific certification documents and applicable standards for the model and configuration being ordered.

Technical Support and Service

Technical support is available throughout the product lifecycle. Services may include installation guidance, operating instructions, maintenance recommendations, troubleshooting assistance, documentation, and replacement-part support.

For customized configurations, technical requirements can be discussed with the manufacturer before production to help ensure that the selected applicator matches the intended application.

Packaging and Shipping

The Flatbed Applicator is securely packaged for transportation to help protect the equipment and its components during shipment. Packaging and shipping arrangements can be customized according to destination, transportation method, and order requirements.

International shipping options and documentation can be discussed with the supplier before shipment.

Why Choose the MF-B4 Flatbed Applicator?

The MF-B4 combines adjustable speed, pneumatic pressure control, height adjustment, moderate temperature control, and optional lamination functionality in one flatbed application system. Its multiple size configurations and customization options make it suitable for manufacturers and businesses that require controlled and repeatable flat-surface processing.

For detailed specifications, available options, and model selection, contact the manufacturer with your substrate size, material type, application process, and production requirements.
