In large-format lamination, film application, graphic mounting, and other flat-surface application processes, accurate material positioning is essential for achieving consistent results. When working with transparent films, translucent substrates, printed graphics, or large-format materials, visibility can become an important part of the workflow.
The MEFU LED Flatbed Applicator combines a large flatbed working surface with integrated LED lighting to provide a clearer and more visible working area. The illuminated surface helps operators observe material edges, alignment marks, overlaps, and other details during positioning and application.
Designed for industrial and professional applications, the MEFU LED Flatbed Applicator is available in multiple working sizes and can be configured for different production requirements.
What Is an LED Flatbed Applicator?
An LED Flatbed Applicator is a flat application table equipped with an integrated LED lighting system. Unlike a conventional flatbed applicator, the illuminated working surface provides additional visibility from below the material.
This can be particularly useful when working with transparent or translucent films and substrates. Light passing through or around the material can make edges, graphics, alignment points, and other visual details easier to observe.
The LED function is not intended to replace the application process itself. Instead, it works as an integrated visual aid that can help operators position and inspect materials more effectively.
For manufacturers and professional users, this combination of a stable flatbed surface and integrated illumination can simplify manual application workflows and improve operator control.
Why Is LED Lighting Useful on a Flatbed Applicator?
Material positioning is an important step in many lamination and application processes. Even when the application equipment provides consistent pressure or adjustable speed, operators still need to see where the material is being placed.
Integrated LED lighting can help address this challenge.
Clearer Visibility of Materials
The illuminated working surface provides additional light beneath the material. This can make transparent and translucent films easier to see during positioning.
Operators can more easily observe material boundaries and compare the substrate with the intended application area.
Easier Material Positioning
Accurate positioning is especially important when applying graphics, films, protective materials, or multi-layer substrates.
The LED-lit working area can make edges, registration points, and alignment marks more visible, helping operators position materials before starting the application process.
Improved Observation During Application
During manual lamination or film application, operators may need to monitor the contact area as the material is progressively applied.
The illuminated surface can provide better visibility of the working area and make it easier to observe changes during the process.
Better Visibility for Large-Format Work
Large-format materials can cover a substantial portion of the working surface. Additional illumination can make the working area easier to inspect, particularly when the material itself is transparent, translucent, or visually difficult to distinguish from the substrate.
How Does the LED Flatbed Applicator Work?

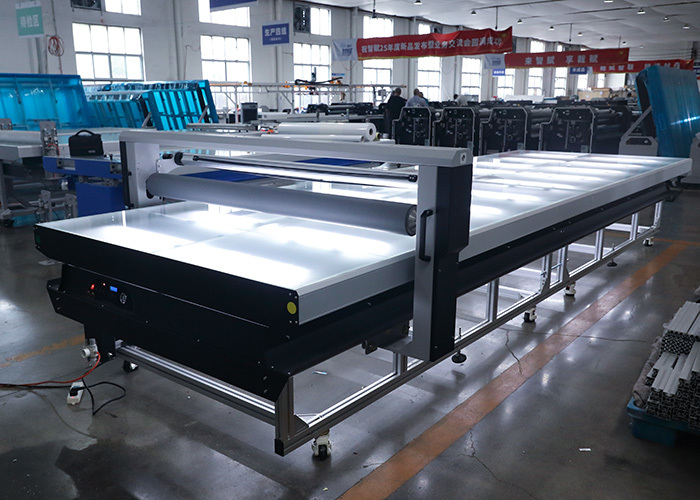

The MEFU LED Flatbed Applicator uses an integrated LED lighting system beneath the working surface.
When a suitable material is placed on the table, the LED illumination provides light through or around the substrate. Depending on the material characteristics, this can increase visual contrast and make specific areas easier to observe.
The lighting can assist operators in checking:
- Material edges
- Alignment marks
- Graphic positioning
- Overlapping areas
- Transparent and translucent films
- Application areas
- Surface conditions
- Potential dust or foreign particles
- Areas where material positioning needs adjustment
The exact visual effect depends on the transparency, thickness, color, and structure of the material being processed.
LED Flatbed Applicator for Lamination
Lamination is one of the applications where an illuminated flatbed can provide practical advantages.
When applying a protective film, adhesive film, graphic film, or other sheet material, the operator needs to control the position of the material relative to the substrate.
With an LED-lit working surface, the operator can observe the substrate and material more clearly during positioning.
The MEFU system can also be configured with other application functions, depending on the model and production requirements. Adjustable speed, pneumatic pressure, height adjustment, and temperature control may be incorporated into applicable configurations.
This allows the LED lighting system to function as part of a broader application platform rather than as a standalone lighting feature.
Working with Transparent and Translucent Materials
Transparent and translucent materials can be more difficult to position on a conventional worktable because their edges and surfaces may not always be easy to distinguish.
This is where an illuminated flatbed can be particularly useful.
The LED lighting provides illumination from below the working surface, helping operators identify the boundaries and position of certain transparent or translucent materials.
Potential applications include:
- Transparent films
- Translucent sheets
- Protective films
- Graphic films
- Clear adhesive materials
- Display materials
- Multi-layer film applications
The actual visibility depends on the optical properties of the material and the specific application environment.
MEFU LED Flatbed Applicator Features
The LED lighting system is the key feature of this product concept, but the MEFU platform can also incorporate other functions depending on the selected configuration.
Integrated LED Lighting
The illuminated working surface provides additional visibility for positioning, application, and inspection.
Adjustable Speed
Adjustable operating speed allows users to control the application process according to material characteristics and production requirements.
Pneumatic Adjustable Pressure
A pneumatic pressure system can provide controlled pressure across the application area, supporting consistent material contact during applicable processes.
Height-Adjustable Design
An adjustable working height can provide greater flexibility for different operators, substrates, and production environments.
Temperature Control
Applicable configurations can support temperature control up to 60°C for processes requiring moderate heating.
Large Working Area
Multiple MEFU models are available to support different substrate dimensions, including large-format applications.
Custom Configuration
Different applications may require different working dimensions, lighting configurations, pressure settings, or other technical specifications. Customized solutions can be discussed according to the project requirements.
Applications of the MEFU LED Flatbed Applicator
The MEFU LED Flatbed Applicator can be used in a variety of professional and industrial environments where clear visibility and accurate positioning are important.
Signage and Display Production
The illuminated working surface can assist operators when positioning graphics, films, and display materials during production.
Graphic Application
Large-format graphics often require careful positioning before application. LED illumination can make material edges and alignment areas easier to observe.
Film Application
Protective films, adhesive films, and other sheet materials can be positioned on the illuminated working surface before application.
Lamination
The LED system can provide additional visibility during film lamination and other flat-surface bonding processes.
Transparent Material Processing
The illuminated table can be particularly useful for transparent and translucent materials where conventional table surfaces may provide limited visibility.
Prototype and Small-Batch Production
The flexible working surface can support prototype development, customized applications, and small-batch manufacturing where operators may manually position and inspect materials.
LED Lighting and Application Accuracy
LED illumination should be viewed as a visual assistance feature rather than a standalone accuracy system.
The final application result can also depend on material properties, operator technique, substrate preparation, pressure, speed, temperature, and other process conditions.
However, providing a clearer working area can help operators make more informed positioning decisions during the application process.
For applications where alignment and material positioning are important, this additional visibility can become a useful part of the overall workflow.
How to Choose the Right MEFU Model
Selecting the appropriate MEFU LED Flatbed Applicator depends on several factors.
- Consider the Material Size
- Consider Production Requirements
- Consider Material Type
- Consider the Application Process
- Consider Future Production Needs
Start with the maximum substrate dimensions that need to be processed. The working area should provide sufficient space for the material and the required application process.
For occasional or smaller-scale applications, a standard-size configuration may be sufficient. Larger production environments may benefit from an extended working area.
If you regularly work with transparent or translucent films, an LED-equipped working surface may provide particular value during positioning and inspection.
Different applications may require different combinations of speed, pressure, temperature, and working height.
When selecting equipment for long-term use, it can be useful to consider not only current substrate dimensions but also potential future applications and larger materials.
Customized LED Flatbed Applicator Solutions
Not every application has the same technical requirements.
Depending on the project, customization may be available for working dimensions, LED lighting configuration, application functions, operating parameters, and other equipment specifications.
When requesting a customized MEFU LED Flatbed Applicator, customers should provide information such as:
- Maximum substrate size
- Material type
- Material thickness
- Application process
- Required working temperature
- Required pressure
- Desired operating speed
- Production volume
- Available installation space
- Required certifications
Providing these details allows the manufacturer to evaluate the appropriate configuration more efficiently.
MEFU LED Flatbed Applicator for Professional Production
The MEFU LED Flatbed Applicator is designed to combine visibility, flexibility, and a large-format flat working surface in one application platform.
Its integrated LED lighting can help operators see materials more clearly during positioning, lamination, and application processes, while the broader MEFU platform can provide adjustable speed, pneumatic pressure, height adjustment, temperature control, and different working-area configurations depending on the selected model.
From standard-size applications to large-format production, the MEFU series offers multiple configurations for different working environments.
If your production process involves transparent films, large-format graphics, protective films, lamination, or other flat-surface materials where positioning visibility is important, an LED Flatbed Applicator can provide a practical way to improve the working environment and operator control.
Conclusion
The MEFU LED Flatbed Applicator brings integrated LED illumination to a professional flatbed application platform, providing operators with a clearer view of materials during positioning, lamination, and application.
For transparent films, translucent substrates, large-format graphics, and other applications where visual positioning is important, an illuminated working surface can provide useful process visibility.
With multiple working sizes, adjustable application functions, and customization possibilities, the MEFU series can be configured for a wide range of professional and industrial applications.
For detailed specifications, model selection, LED configuration, and customization options, contact the MEFU manufacturer with your material dimensions and application requirements.
