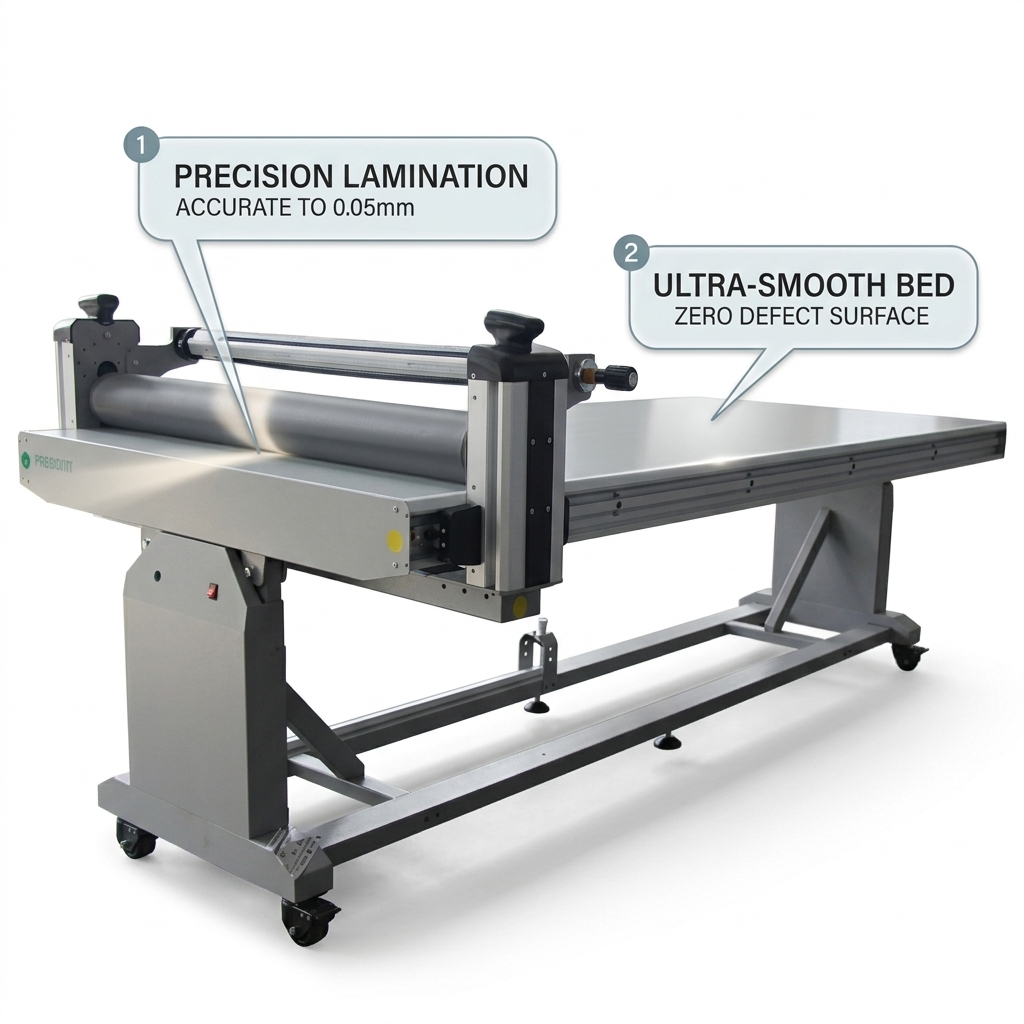

Multi Film Thickness Compatible Flatbed Applicator For BOPP PET Vinyl Mounting

The MEFU MF1630-B4 is a multi film thickness compatible flatbed applicator engineered for sign shops and laminating service providers that work with a wide range of lamination films. The machine accommodates film gauges from 25 to 250 micron, covering everything from light BOPP and PET overlaminates to heavy self-adhesive vinyl. This broad compatibility allows one workstation to handle cold lamination, protective film application and graphic mounting without hardware changes.

Film thickness directly affects how a laminator must apply pressure. Thin films tear or stretch if pressed too hard, while thick films require firm, even force to bond fully without silvering or tunneling. The MF1630-B4 addresses this with a finely adjustable pneumatic pressure system and a smooth 130mm silicone roller that maintains uniform contact across the full working width, delivering bubble-free results on every film grade.

The machine supports the most common laminating films in commercial use, including BOPP, PET, PVC and self-adhesive vinyl. Operators can switch between films in minutes by adjusting pressure and, where needed, changing the tension of the unwind. This flexibility is especially valuable for print providers that laminate menus, posters, book covers and signage using different film specifications from day to day.

• Wide Film Range: Handles film thickness from 25 to 250 micron without hardware changes
• BOPP PET PVC Support: Compatible with common BOPP, PET, PVC and self-adhesive vinyl films
• Adjustable Pneumatic Pressure: Fine-tuned force prevents tearing thin film and ensures bonding of thick film
• Bubble-Free Roller: 130mm silicone roller presses film down evenly for a clean finish
• LED Positioning: Backlit table aids accurate film and print alignment before the pass
• Quick Film Changeover: Switch between film types in minutes with simple pressure and tension adjustment

Follow this Standard Operating Procedure (SOP) to laminate thin, medium, or thick films onto 80mm substrates without bubbles, wrinkles, or board crushing:

[Step 1: Board & Ramp Setup] ──► [Step 2: Webbing & Anti-Static] ──► [Step 3: Pressure & Speed Tuning] ──► [Step 4: Roll-Down & Edge Inspection]
