Servo Motor Drive Precision Flatbed Applicator For Accurate Vinyl Graphic Registration

In high-precision signmaking, vehicle wrap prototyping, and industrial display manufacturing, achieving exact graphic alignment across large-format substrates is critical. While traditional manual or basic AC/stepper-driven applicators are adequate for general mounting, high-end multi-panel graphics and tiled vinyl prints require millimeter-exact registration.

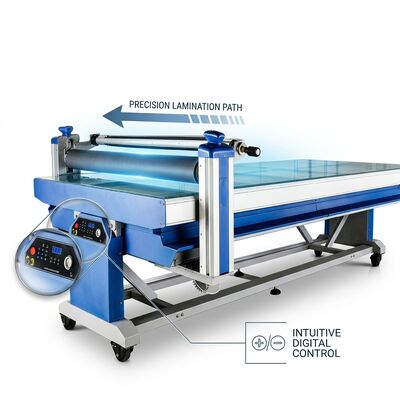

The MF-B4 is a servo-motor-driven flatbed applicator built for sign makers who demand the highest level of positioning accuracy and motion control. Unlike conventional machines that rely on manual or pneumatic-only movement, the MF-B4 uses a servo motor to drive the roller carriage with digital precision, ensuring the applicator follows an exact, repeatable path across every sheet. This precision is essential when mounting multi-panel graphics, where even a millimeter of drift produces visible seams.

• Servo Motor Drive: Closed-loop motion control delivers smooth, vibration-free roller travel
• Precision Registration: Positioning accuracy of +/-0.1mm for exact multi-panel graphic alignment
• PLC Touch Screen: Save material profiles and recall repeat pressure and speed settings
• Consistent Speed: Constant roller speed under load keeps quality uniform across runs
• Low-Noise Operation: Reduced mechanical stress improves operator comfort on long shifts
• LED Backlit Table: Illuminated surface aids visual alignment before the automated pass

The motor drive architecture dictates how smoothly and precisely the gantry traverses the glass bed.

When your production requires registration accuracy for multi-panel displays, backlit graphics, or high-value board mounting, servo-driven flatbed applicators provide the exact control needed to prevent wasted media.

Our engineering team designs custom servo-driven motor applicators featuring dual-axis synchronized motion, high-clearance gantries for up to 90mm boards, and micro-precision pneumatic control.

[Contact Our Application Engineers to Discuss Precision Servo Flatbed Options & Schedule a Demo]
