MF1700-F1 PLUS vs Standard Industrial Laminators: A Technical Comparison
In the large-format printing industry, laminating equipment plays an important role in protecting graphics, improving appearance, and preparing printed media for long-term indoor or outdoor use.
Although many 64-inch roll laminators offer similar basic functions, differences in machine design, automation, and workflow efficiency become more noticeable in high-volume production environments.

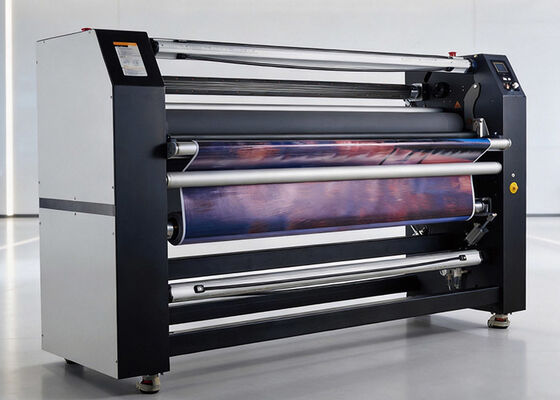

The MF1700-F1 PLUS is one example of a production-oriented laminator designed for wide-format printing applications. Based on publicly available specifications, this article compares its key features with those commonly found on standard industrial laminators.
Typical Capabilities of a 64-Inch Industrial Laminator
Most industrial roll laminators in the 1600–1700 mm class are designed for applications such as:
- Vinyl graphics
- Vehicle wrap films
- Posters
- Photo prints
- PVC materials
- PP synthetic paper
- Backlit film
- Sign graphics
Many machines in this category support:
- Cold lamination
- Heat-assisted lamination
- Roll-to-roll production
- Adjustable roller pressure
Because these core functions are widely available, manufacturers often differentiate their equipment through productivity improvements and mechanical design.
1. Designed for Continuous Production
According to the published product specifications, the MF1700-F1 PLUS supports a maximum laminating speed of up to 50 m/min.
The achievable production speed in real applications depends on factors including:
- Media type
- Lamination film
- Operator settings
- Print quality requirements
For print providers processing long rolls throughout the day, a higher maximum operating speed provides additional flexibility when production conditions allow.
Suitable applications include:
- Fleet graphics
- Advertising posters
- Indoor and outdoor signage
- Large-format photo printing
- UV printed rolls
2. Swing-Out Air Shaft Simplifies Media Loading
Loading heavy rolls is one of the more time-consuming steps during production.
Unlike conventional fixed shaft systems, the MF1700-F1 PLUS uses a Swing-In / Swing-Out Air Shaft design.
Potential workflow benefits include:
- Easier loading of heavy media rolls
- Faster material replacement
- Reduced physical effort during roll changes
- Improved accessibility around the machine
This design is particularly useful in production environments where different materials are changed frequently.

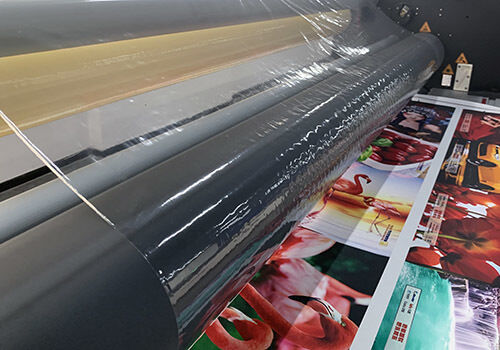

3. Heat-Assisted Lamination Instead of High-Temperature Lamination
The MF1700-F1 PLUS incorporates a top-heated roller with an operating temperature of up to 60°C.
Unlike traditional thermal laminators that rely on high temperatures, this system provides moderate heat to assist pressure-sensitive adhesive films.
Heat-assisted lamination may help:
- Improve adhesive activation
- Support smoother film application on certain materials
- Reduce the likelihood of visible silvering under suitable operating conditions
Actual results depend on film quality, printing substrate, environmental conditions, and operator setup.
4. Large Silicone Roller for Stable Pressure Distribution
Public specifications indicate that the machine is equipped with a 150 mm silicone roller.
Compared with smaller rollers commonly used on entry-level equipment, a larger roller generally provides:
- A larger contact area
- More consistent pressure distribution
- Better support for long continuous rolls
Final lamination quality still depends on proper pressure adjustment and material compatibility.
5. Integrated Roll-to-Roll Workflow
The MF1700-F1 PLUS supports:
- Automatic unwinding
- Automatic rewinding
- Continuous roll processing
This configuration reduces interruptions during long production runs and is suitable for applications involving hundreds of meters of printed media.
Typical materials include:
- Self-adhesive vinyl
- Reflective film
- PET film
- PVC graphics
- Vehicle wrap media

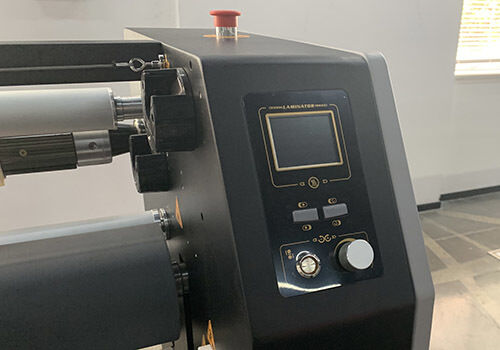

6. Production-Oriented Control System
According to the manufacturer, the MF1700-F1 PLUS includes several operational features designed for industrial workflows, including:
- Digital temperature display
- Speed adjustment
- Front and rear control panels
- Foot pedal operation
- Production monitoring functions
These features are intended to improve operational convenience rather than change the lamination process itself.
Technical Comparison
| Feature |
Standard 64" Laminator |
MF1700-F1 PLUS |
| Maximum Working Width |
Around 1600–1700 mm |
1630 mm |
| Cold Lamination |
Yes |
Yes |
| Heat Assistance |
Available on some models |
Top Heated Roller (up to 60°C) |
| Roll-to-Roll Operation |
Yes |
Yes |
| Board Mounting |
Usually supported |
Up to 28 mm |
| Media Loading |
Fixed shaft on many models |
Swing-In / Swing-Out Air Shaft |
| Roller Type |
Varies by manufacturer |
150 mm Silicone Roller |
| Control System |
Basic digital controls |
Digital controls with production monitoring functions |
| Maximum Published Speed |
Varies by manufacturer |
Up to 50 m/min |
Specifications are based on publicly available manufacturer information. Actual machine configurations may vary by market or optional equipment.
Which Production Environments Can Benefit?
The MF1700-F1 PLUS is suitable for businesses that regularly process large-format graphics, including:
- Sign manufacturers
- Digital printing companies
- Vehicle wrap providers
- Advertising production facilities
- Exhibition graphics suppliers
- Print finishing workshops
Operations with frequent media changes or long production runs may benefit from its media handling and automation features.
Final Thoughts
The MF1700-F1 PLUS offers the core capabilities expected from a modern 64-inch industrial laminator while incorporating several workflow-oriented design features, including a swing-out air shaft, heat-assisted lamination, automatic roll handling, and compatibility with rigid board mounting.
Rather than changing the fundamental laminating process, these features are intended to improve operational efficiency and production flexibility in high-volume print environments.
When evaluating industrial laminators, buyers should compare published technical specifications alongside their own production requirements, media types, and workflow needs to determine the most appropriate solution.
