Home /Products/Cold Roll Laminator/220V / 110V Heavy Duty Laminating Machine Industrial Cold Roller Laminator

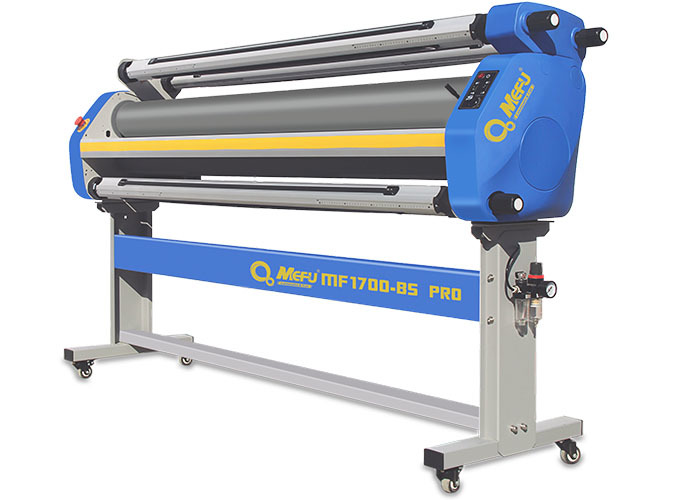

220V / 110V Heavy Duty Laminating Machine Industrial Cold Roller Laminator

1
MOQ
200~4000USD
Price
220V / 110V Heavy Duty Laminating Machine Industrial Cold Roller Laminator
Features Gallery Product Description Chat Now
Features
Specifications
Name: Heavy Duty Laminating Machine
Max Laminating Width: 1600mm
Max Laminating Thickness: 25mm
Roller Diameter: 130mm
Power Supply: 220V/110V
Warranty: 1 Year
Highlight:

220V Heavy Duty Laminating Machine

,

110V Heavy Duty Laminating Machine

,

Industrial Cold Roller Laminator
Basic Infomation
Place of Origin: CHINA
Brand Name: MEFU/LEFU
Certification: CE, RoHS, ISO, PSE
Model Number: MF1700-B5 PRO
Payment & Shipping Terms
Packaging Details: wooden case/carton
Delivery Time: 7-14 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

Heavy-Duty Build: Why A 1 Nip Gap And Robust Frame Are Essential For Industrial Cold Laminators



The Foundation of Performance: Understanding the Industrial Imperative

In the world of large-format graphics and signage, a laminator isn't just a machine; it's a production backbone. While standard, entry-level cold laminators suffice for light-duty work, industrial environments demand a machine built for relentless operation, maximum material versatility, and zero downtime.

This is where the term "Heavy-Duty Build" becomes non-negotiable. Its value is defined by two critical physical specifications: the Nip Gap (or roller opening) and the Frame Rigidity. These features are the true difference between a machine that prints posters and one that builds businesses.

The Critical Advantage of a 1 Nip.

The "nip gap" is the adjustable distance between the two main rollers. For industrial use, a maximum roller opening of 1in approximately 25 mm or more is essential for versatility and mounting capability.

Feature Industrial Necessity Commercial Benefit
Wide Nip Gap (1in) Mounting Substrates: Allows for the lamination of high-value graphics onto thick, rigid materials like 1in foam board, MDF, or thick acrylic for displays and signage. Expanded Service Offerings: Enables your business to offer lucrative, high-margin mounting and rigid display services that competitors with narrower gaps cannot handle.
Pressure Consistency Handles materials of dramatically varying thickness (e.g.,10mil print on 1in board) while maintaining uniform pressure across the entire nip width. Reduced Rework: Guarantees bubble-free results even on challenging, thick substrates, drastically cutting down material waste and operator time.
Material Handling Accommodates thick roll materials, such as heavy floor graphics vinyl or specialized architectural films. Future-Proofing: Ensures the machine can handle new, heavier specialty films and emerging market demands without requiring immediate replacement.
The Unseen Value: Frame Rigidity and Robust Construction

A laminator’s frame acts as its anchor. If the frame flexes, the precision components inside—the rollers, the drive mechanism, and the pressure system—cannot maintain accuracy.

Feature Industrial Necessity Risk of Failure (Weak Frame)
Frame Rigidity Supports the enormous linear pressure required for cold lamination (often hundreds of pounds per inch) without bending or vibrating. Roller Skew: Under high pressure, a weak frame will subtly twist, causing rollers to misalign and leading to immediate wrinkling, skewing, and film waste.
Heavy Components Incorporates industrial-grade features, such as thick-walled steel chassis and high-torque motors necessary for large, heavy rolls (1600 mm film rolls can weigh hundreds of pounds). Premature Wear: Continuous stress on light frames leads to rapid wear on bearings, gearboxes, and motors, resulting in frequent, costly repairs and unplanned downtime.
Longevity Built for 24/7 operational cycles over 5 to 10 years in a demanding production environment. Short Lifespan: An entry-level frame will quickly fail in a high-volume industrial setting, forcing early capital replacement and undermining ROI.
Case in Point: Why Entry-Level Fails in Industrial Settings

A simple visual comparison highlights the difference:

Specification Entry-Level Laminator (A4/Light) Industrial Cold Laminator (1600mm)
Frame Material Lightweight aluminum or thin sheet metal Reinforced welded steel chassis
Nip Gap 0.4in(10mm) or less 1in(25mm) or more
Pressure System Manual crank or small electric motor Pneumatic (Air) Cylinders or high-force hydraulics
Focus Low cost, occasional use, posters High throughput, material versatility, long-term durability

For a business relying on high-quality, continuous output—especially involving mounting or heavy materials—investing in a machine with a robust frame and a wide, adjustable nip gap is an operational necessity. It is the only way to ensure quality, speed, and profitability over the long term.
